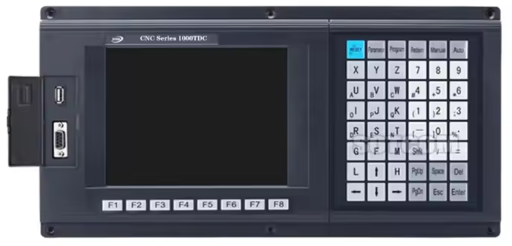

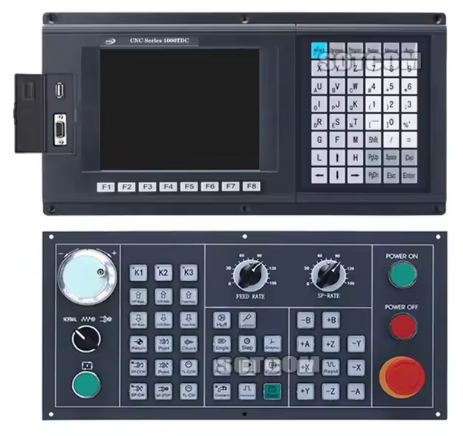

NEW1000TDCa-2 2 Axis CNC Controller

Features:

- Intelligent human-machine interface

- Bus Modbus, EtherCAT technology and technology for ARM+DSP+FPGA

- U disk and RS232 interface, supporting U disk DNC function

- 128M user program space and unlimited number of programs. It can be expanded to 32G

- Adapt to multi-turn absolute servo motor. Faster and more accurate

- The maximum fast moving speed is 300m/min, and the processing speed is 0.01~30m/min

- Short straight program pre-reading technology to meet high-speed fine cutting needs

- Network remote technology and online online direct diagnosis of user system

- Absolute motor (multi-turn 17-bit) control technology

- The interpolation period is 2ms, and the control accuracy is 0.1um

- Grating ruler full closed-loop control technology and processing accuracy ≤2um

System Functions:

- Number of control axes: 2 axes (X, Z)

- Minimum programming: 0.001mm

- Maximum programming: ±99999.999mm

- Maximum speed: 30m/min

- Feed speed: 0.001~15m/min

- Manual continuous mode: one axis or two axes simultaneously

- Interpolation method: straight, arc and thread interpolation

- Tool compensation: length compensation and tip radius C compensation

- Tool compensation input: trial cut measurement input method

- Spindle function: gear, dual analog control and rigid tapping

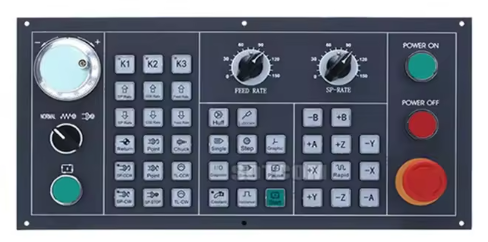

- Handwheel function: panel type and external handheld type

- Handwheel machining: programmed handwheel machining function

- Screensaver function: Screen saver function

- Tool post function: 99 in total, including gang tool posts and electric tool posts

- Communication function: RS232 and U disk interfaces

- Compensation function: tool compensation, clearance compensation, screw compensation and radius compensation

- Program editing: relative/absolute programming and hybrid programming

- Limit function: soft limit and hard limit

- Thread function: Metric and imperial, straight thread, tapered thread, etc.

- Read-ahead function: short straight line pre-processing 10,000 rows

- Password protection: Multi-level password protection

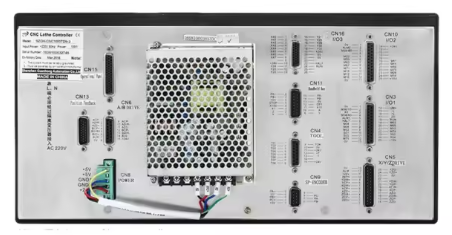

- Input and output: bus I/O points 48x32

- PLC programming: Users can freely design PLC functions

- Acceleration and deceleration control: linear acceleration and deceleration, and exponential acceleration and deceleration

- Number of encoder lines: Any setting

- User macro program: Yes

- Electronic gear function: Yes

System G Code:

- Quick positioning: G00

- Linear interpolation: G01

- Circular interpolation: G02/G03

- Thread cutting: G32

- Cylindrical or cone cutting cycle: G90

- End face cutting cycle: G94

- Thread cutting cycle: G92

- Tapping fixed cycle: G93

- Outer circle roughing cycle: G71

- End face roughing cycle: G72

- Closed cutting cycle: G73

- End face deep hole drilling cycle: G74

- Outer diameter grooving cycle: G75

- Composite thread cutting cycle: G76

- Cycle of program: G22, G800

- Local coordinate system: G52

- Detection jump instructions: G31, G311

- Polar programming: G15, G16

- Metric and imperial programming: G20, G21

- Coordinate setting and bias: G184, G185

- Workpiece coordinate system: G54-G59

- Tool radius C compensation instructions: G40, G41, G42

- Accurate positioning/continuous path processing: G60/G64

- Constant line speed cutting: G96/G97

- Feed mode instructions: G98, G99

- Return to the program start point instruction: G26

- Return fixed-point commands: G25, G61, G60

- Return to reference point: G28

- Suspension command: G04

- Accessibility: S, M, T

Package Included:

- 1 x CNC Controller

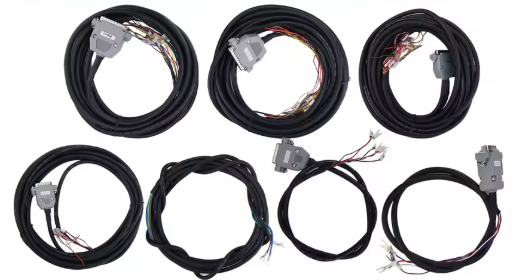

- 1 x 5M/16.4FT Cable
